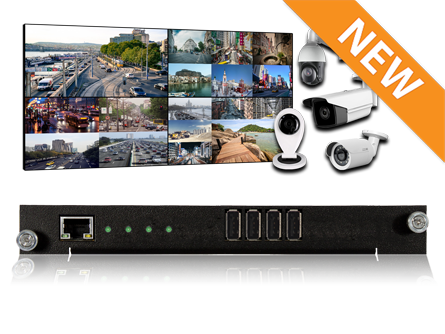

IP Decoding and Visualisation on DVP500x 4K60 Family

DVP500x is the perfect solution for LED wall displays, boardrooms, show rooms, university halls, government applications, conference centers and even mission critical control rooms in 24/7 operation to have supervision and to display smaller or larger number of IP cameras throughout the wall. Thus, the application area is rather wide as the device gives outstanding services for high tech AV projects.

4 pieces of high-tech hardware decoders on each card			IP decoding capability can decode and display parallel 2000MP/sec stream			Decode and display maximum 576x 1080p or 144x 4K30 IP streams			Well balanced network, thanks to each decoder board has own, separate LAN connection
Display of multiple Web pages			Decoding and display of movie files from USB pendrive or LAN connenction			Display of vnc sources from remote operator PC screens			Display of IP video streams from IP cameras of the following standards (IPv4, RTSP, RTP/UDP, SRTP/UDP, MPEG2-TS/UDP, HTTP, etc.)

IP Decoding Technical Characteristics

Supported IP camera stream formats
IPv4, RTSP, RTP/UDP, SRTP/UDP, MPEG2-TS/UDP, HTTP, HTTPS TCP/IP, ONVIF CameraDiscovery & GetStreamUri
IP decoding capability of one board
4x 4K @ 60

8x 4K @ 30

16x 1080p @ 60

32x 1080p @ 30

36x 720p @ 60
IP decoding capability can decode and display parallel 2000MP/sec stream

Video File Support as Media Player

This presentation type allows to open a local video file from Fat32 or NTFS USB Stick or a network shared video file from the local network.

Video file formats
mp4, mkv, webm, mpeg-2
Video standards supported
H.265, Main10, Main
WEBM, VP9 and VP8
H.264: Baseline (no FMO/ASO support), Main, High, Stereo SEI (half-res)
VC-1: Simple, Main, Advanced
MPEG-4: Simple (with B frames, interlaced; no DP and RVLC)
H.263: Profile 0

DiVX: 4/5/6
XviD: Home Theater
MPEG-2: MP

Video file location
Local USB connected pen-drive
Local Are Network

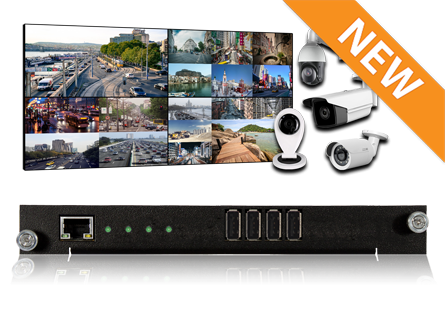

IP4 Input Card Advantages

FLEXIBILITY - The IP Video system is highly flexible and customizable. DEXON System can provide the most suitable design, tailored to the exact project. Less IP cameras require less boards while more IP Cameras require more boards.
NO MASTER’S CPU LOAD - Thanks to the 4 pieces of high-tech hardware decoders on each card the master CPU load is zero and real time display is guaranteed.
WELL BALANCED NETWORK - 1 Gbit LAN connection and each decoder board has own, separate LAN connection.

Conversion of IP Stream into Video Stream

The task of the IP4 input cards are to capture the IP Streams from the IP Cameras, transform it into Video Stream. This process assures that the master’s CPU has no additional load from the visualization of IP Cameras.

Display of multiple Web pages

This presentation type allows to open a webpage.

Display of vnc sources from remote operator

IP4 input card allows to open a VNC Server's content.

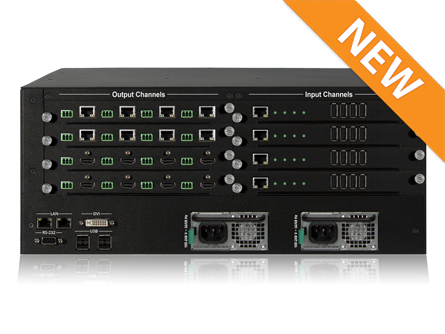

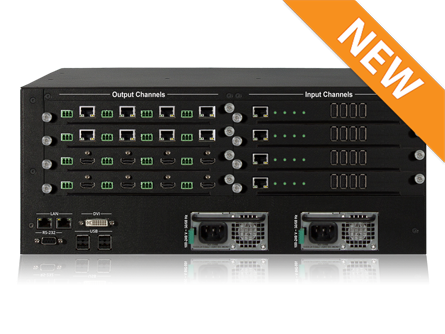

DVP500x, 4U high 19” compatible rack mount chassis
								4RU high chassis Input boards 1 - 4 Output boards 1 - 4 Interfaces 1 x DVI, 2 x LAN 4 x USB, 1 x RS232C 1 x PS, 1 x PS redundant 483 x 178 x 526 mm

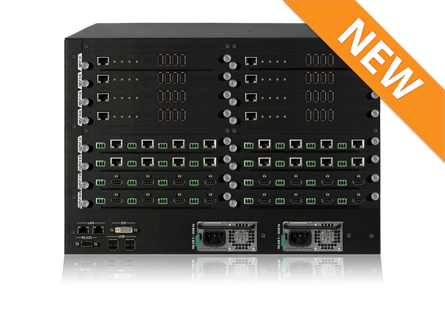

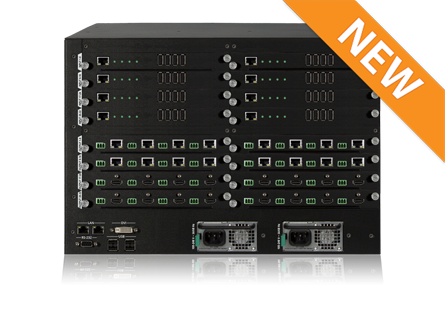

DVP500x, 7U high 19” compatible rack mount chassis
								7RU high chassis Input boards 1 - 8 Output boards 1 - 8 Interfaces 1 x DVI, 2 x LAN 4 x USB, 1 x RS232C 1 x PS, 1 x PS redundant 483 x 296 x 526 mm

DVP500x, 14U high 19” compatible rack mount chassis
								14RU high chassis Input boards 1 - 18 Output boards 1 - 18 Interfaces 1 x DVI, 2 x LAN 4 x USB, 1 x RS232C 1 x PS, 2 x PS redundant 483 x 613 x 526 mm

Input 4K60	4U high chassis 4 - 16 7U high chassis 4 - 32 14U high chassis 4 - 72
Input Signal Formats	IPv4, RTSP, RTP/UDP, SRTP/UDP, MPEG2-TS/UDP, HTTP, HTTPS TCP/IP, ONVIF CameraDiscovery & GetStreamUri
Output	4U high chassis 4-16 7U high chassis 4 -32 14U high chassis 4 -72
Output Signal Formats	HDMI, HDBaseT
Audio	Embedded or separate analogue R-L audio inputs and outputs
HDCP	HDCP support of 1.4, 2.0, 2.2 specifications
Control	Local control by local monitor, keyboard, mouse Remote control through RS232, TCP/IP LAN Web based remote control user interface
Humidity	10 - 90%, non-condensing
Temperature	5 - 40 °C
Power Consumption	4U high chassis: 250-400 W 7U high chassis: 400-600 W 14U high chassis: 500-1000 W
Power Supply	100V - 240V AC
Weight	4U chassis: 20-30 kg 7U chassis: 30-45 kg 14U chassis: 45-60 kg
Dimensions	4U chassis: W483 x H178 x D526 (mm) 7U chassis: W483 x H296 x D526 (mm) 14U chassis: W483 x H613 x D526 (mm)

INPUT AND OUTPUT DETAILS

Input signal specifications	Details
IP camera stream	IPv4, RTSP, RTP/UDP, SRTP/UDP, MPEG2-TS/UDP, HTTP, HTTPS TCP/IP, ONVIF CameraDiscovery & GetStreamUri
Video file	mp4, mkv, webm, mpeg-2

Output signal specifications	Details
Digital HDMI 1.4 and HDCP 2.2	from 640x480 up to 4096x2160 60 Hz pixels
HDBaseT	up to 100m (330 feet) from 640x480 to 4096x2160 30 Hz
