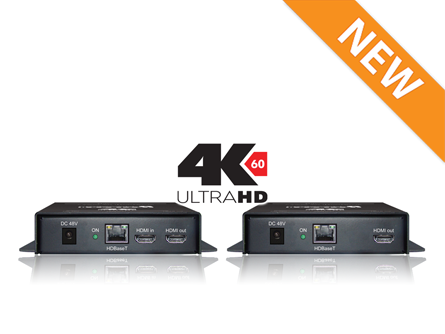

DCAT4KPoE HDBaseT Extenders

DCAT4KPoE HDBaseT Transmission System

DEXON Systems provide high quality HDBaseT compatible Cat5e/Cat6 sender-receiver pair for integrated HDMI and RS232C signal transmission over long distances. The products provide full HDCP compliant signal transmission and EDID management over a single cable offering simple cabling and clear installation. The devices can cover 100m distance ensuring crystal clear video picture thanks to the full digital path between the sender and receiver equipment. Power-over-Ethernet (PoE) service for easy installation, small box size, LED indicators and energy efficient operation support demanding AV project installations.

RJ45 cable

The DCAT PoE products can be used in control rooms, board rooms, government applications, universities and public display walls where cost effective and pixel precise signal transmission give the perfect solution.

Main features

• HDBaseT compliant signal transmitter and receiver boxes, DCATS/DCATS
• Transmiting HDCP compliant HDMI up to 100m (330 feet) distance
• Single CAT5e or CAT6 cable with RJ45 connectors
• Ensures perfect EDID signal path
• Supports high resolution transmission up to 3840x2160@60Hz pixel resolution
• Results perfect crystal clear video picture quality by the digital data path

DCAT4K configuration - HDMI PoE extender

Small alloyed aluminium boxes for easy installation - Sender DCAT4KPoES

Lightweight alloyed aluminium box for signal transmitter with the following input connectors
• HDMI input connector to handle HDMI input signals
• HDMI loop through output connector to drive local monitors
• Additional RJ45 connector

• Additional Phoenix connector for RS232 signals
Output connector
• RJ45 connector for CAT5e or CAT6 cable connection with direct RJ45 connector type

Small, 0.5U high chassis with 1/4 19” rack width for easy installation and fitting to 19” racks. Extra mounting plate included. Low noise level as no internal fans used. The product contains external 90 – 265 V input and +48V output power supply.


DCAT4K sender  - HDMI PoE extender

Small alloyed aluminium boxes for receiver job - DCAT4KPoES

Lightweight alloyed aluminium box for signal transmitter with the following input connector
• RJ45 connector for CAT5e or CAT6 cable connection with direct RJ45 connector type
Output connector
• HDMI output connector to drive HDMI signals
• Additional Phoenix connector for RS232 signals
Small, 0.5U high chassis with 1/4 19” rack width for easy installation and fitting to 19” racks. Extra mounting plate included. Low noise level as no internal fans used. The product contains external 90 – 265 V input and +48V output power supply.



DCAT4K receiver  - HDMI PoE extender



Transmission of signals through a single CAT5e or CAT6 cable

Sigle cable solution for perfect signal transmission with no compression and with pixel-precise visualization
• HDMI signals from 640x480 up to 1920x1080p 60Hz, 4K30 or even 4K60 4:4:4 resolution
• Embedded audio signal transmission integrated
• Full, transparent HDCP handling
• Full, transparent EDID handling



DCAT4K Configuration  - HDMI PoE extender


LED indication feedback of signal transmission status
Information LEDs give status information of the connection and signal transmission
• for Power on












Connector HDMI, RS232, RJ45
Signal Standards HDMI signals
HDMI 1.4 with HDCP 1.4, 2.2 specification
Data Rates Max. 10.2 Gbps of HDMI 1.4 signals
Resolutions Resolution min. 640 x 480@60Hz
max. 1920x1080 60Hz, 4K30, 4K60 4:4:4
Power Supply External +48V power supply module
Input: 100-240VAC, 50-60 Hz
Output: +48V DC, 3A, 15W
Cable Single Cat5e, Cat6 or Cat6a cable up to
100m (300 feet) distance
Dimension W106.5 x H30.5 x D126 (mm)



DCAT4K Configuration  - HDMI PoE extender
