IP Decoding and Visualisation on DMX302x Family

Displaying IP Streams on DMX302x devices

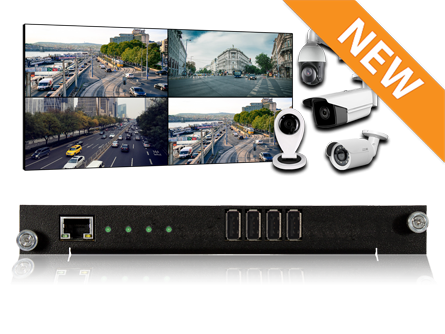

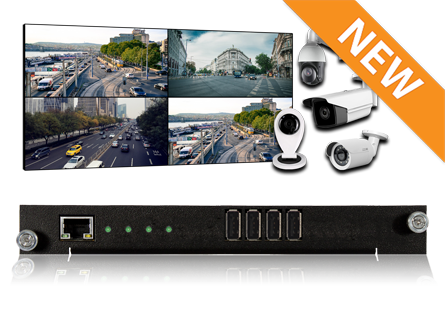

IP4 Input Card the Complete IP Stream Solution for your AV Project


DMX302x offers complete solution for visualizing several IP Cameras, thanks to the 4 pieces of high-tech hardware decoders on each card. The master CPU's load is zero and real time display is guaranteed. DMX302x is a well-designed switcher for special security supervision projects. The system can display plenty of IP Cameras (more than 576), movie files, multiple Web pages and vnc sources. The IP camera decoding is performed by the IP4 stream decoding and visualisation internal board without any external IP decoding device.

IP4 input card advantages:

  • based on custom hardware decoder technology
  • 4x IP decoding channels
  • conversion of IP Stream into Video Stream
  • decoding and display of movie files
  • display of multiple Web pages
  • display of vnc sources from remote operators' PC screens



These customized DMX302x devices can be integrated to your board room, show room, university or conference center projects to have supervision and to display smaller or larger number of IP cameras throughout the wall. They can be applied in mission critical control rooms also where 24/7 operation is crucial.

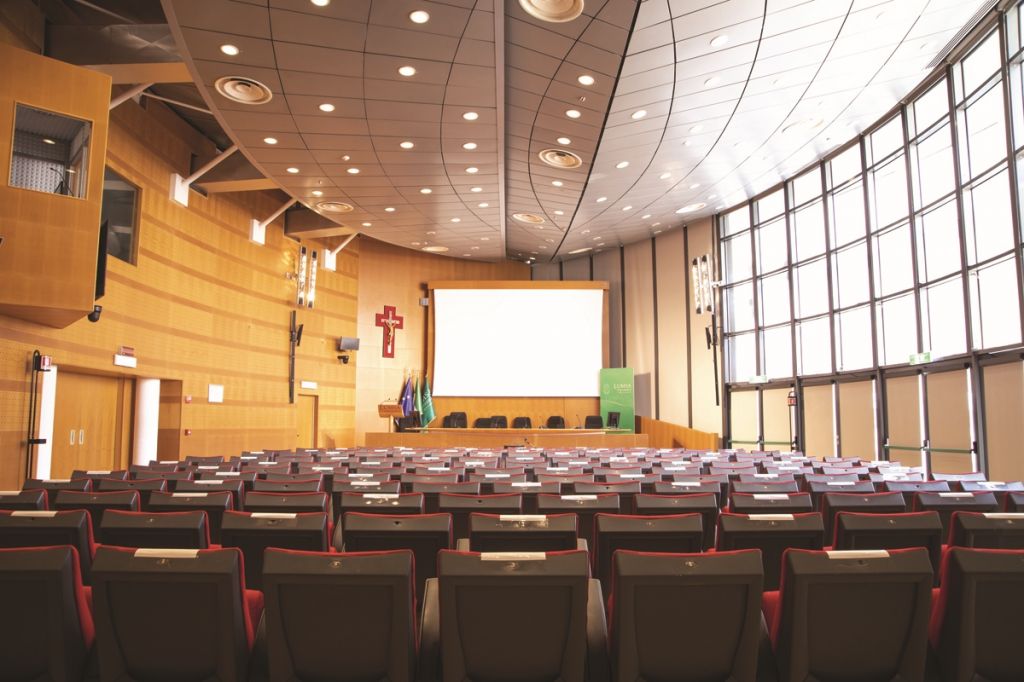

 LUMSA Uni Reference

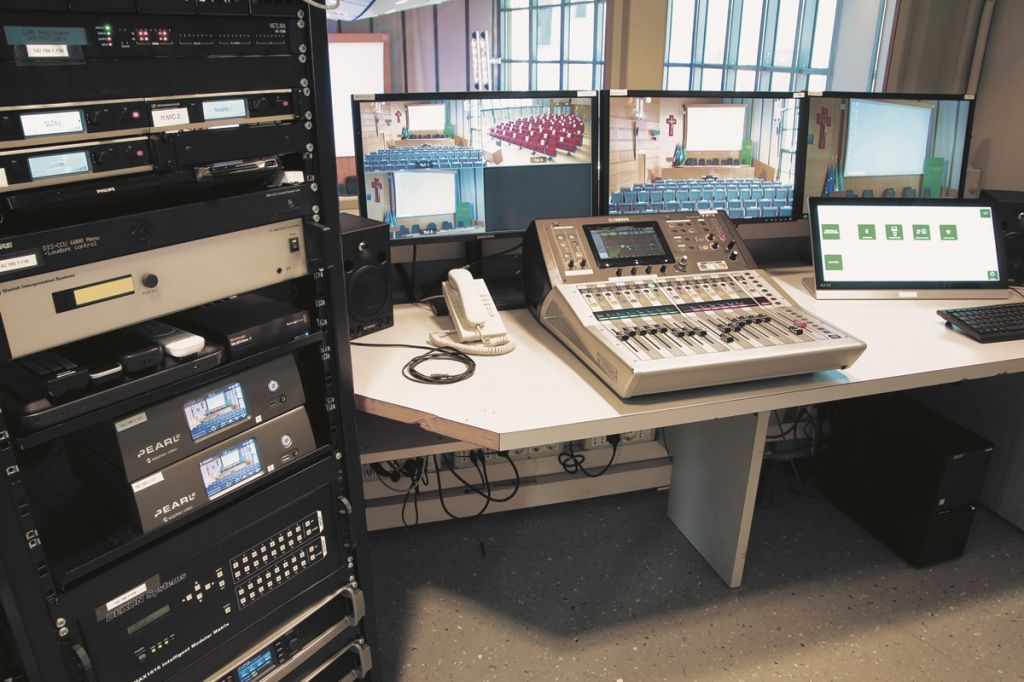

 LUMSA University Ref






4 pieces of high-tech hardware decoders on each card
IP decoding capability can decode and display parallel 2000MP/sec stream
Decode and display maximum 576x 1080p or 144x 4K30 IP streams
Well balanced network, thanks to each decoder board has own, separate LAN connection
Display of multiple Web pages
Decoding and display of movie files from USB pendrive or LAN connenction

Display of vnc sources from remote operator PC screens
Display of IP video streams from IP cameras of the following standards (IPv4, RTSP, RTP/UDP, SRTP/UDP, MPEG2-TS/UDP, HTTP, etc.)





IP Decoding Technical Characteristics

  • Supported IP camera stream formats

    IPv4, RTSP, RTP/UDP, SRTP/UDP, MPEG2-TS/UDP, HTTP, HTTPS TCP/IP, ONVIF CameraDiscovery & GetStreamUri

  • IP decoding capability of one board
    4x 4K @ 60
    8x 4K @ 30
    16x 1080p @ 60
    32x 1080p @ 30

    36x 720p @ 60

  • IP decoding capability can decode and display parallel 2000MP/sec stream

IP4 Technical Characteristics


Video File Support

This presentation type allows to open a local video file from Fat32 or NTFS USB Stick or a network shared video file from the local network.

  • Video file formats

    mp4, mkv, webm, mpeg-2

  • Video standards supported
    H.265,  Main10,  Main
    WEBM,  VP9  and VP8
    H.264:  Baseline  (no  FMO/ASO support), Main, High, Stereo  SEI  (half-res)
    VC-1:  Simple,  Main, Advanced
    MPEG-4:  Simple (with  B  frames,  interlaced; no DP and RVLC)
    H.263:  Profile 0

    DiVX:  4/5/6
    XviD:  Home Theater
    MPEG-2:  MP

  • Video file location
    Local USB connected pen-drive
    Local Are Network
IP4 Video File Support


IP4 Input Card Advantages
  • FLEXIBILITY - The IP Video system is highly flexible and customizable. DEXON System can provide the most suitable design, tailored to the exact project. Less IP cameras require less boards while more IP Cameras require more boards.

  • NO MASTER’S CPU LOAD - Thanks to the 4 pieces of high-tech hardware decoders on each card the master CPU load is zero and real time display is guaranteed.

  • WELL BALANCED NETWORK - 1 Gbit LAN connection and each decoder board has own, separate LAN connection.
IP4 Input Card


Conversion of IP Stream into Video Stream
The task of the IP4 input cards are to capture the IP Streams from the IP Cameras, transform it into Video Stream. This process assures that the master’s CPU has no additional load from the visualization of IP Cameras.


IP4 Conversion of IP Stream



Display of multiple Web pages
This presentation type allows to open a webpage.
IP4 Web Pages


Display of vnc sources from remote operator
IP4 input card allows to open a VNC Server's content.


IP4 vnc sources










DMX302x, 4U high 19” compatible rack mount chassis


DMX302x-4U Presentation Matrix Switcher - Front

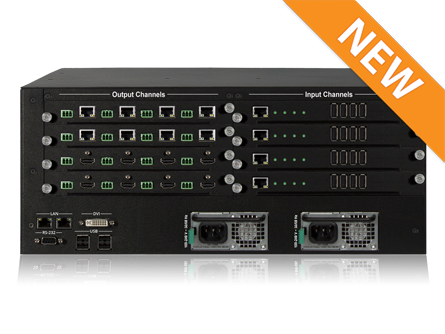

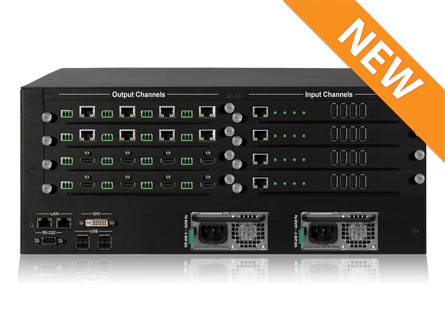

DMX302x-4U with IP4 input cards

  • 4RU high chassis
  • Input boards 1 - 4
  • Output boards 1 - 4
  • Interfaces 1 x DVI, 2 x LAN
  • 4 x USB, 1 x RS232C
  • 1 x PS, 1 x PS redundant
  • 483 x 178 x 526 mm

DMX302x, 7U high 19” compatible rack mount chassis


DMX302x-7U Presentation Matrix Switcher - Front
DMX302x-7U with IP4 input cards

  • 7RU high chassis
  • Input boards 1 - 8
  • Output boards 1 - 8
  • Interfaces 1 x DVI, 2 x LAN
  • 4 x USB, 1 x RS232C
  • 1 x PS, 1 x PS redundant
  • 483 x 296 x 526 mm

DMX302x, 14U high 19” compatible rack mount chassis


DMX302x-14U Presentation Matrix Switcher - Front

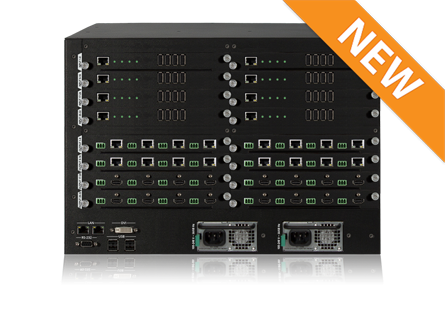

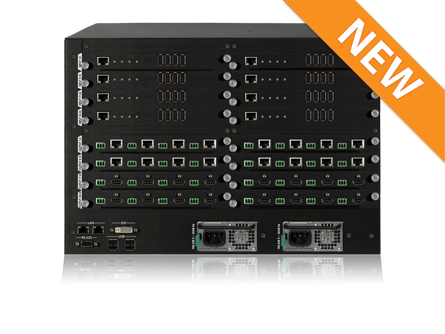

DMX302x-14U with IP4 input cards

  • 14RU high chassis
  • Input boards 1 - 18
  • Output boards 1 - 18
  • Interfaces 1 x DVI, 2 x LAN
  • 4 x USB, 1 x RS232C
  • 1 x PS, 2 x PS redundant
  • 483 x 613 x 526 mm

Input 4K60
4U high chassis 4 - 16
7U high chassis 4 - 32
14U high chassis 4 - 72
Input Signal Formats
IPv4, RTSP, RTP/UDP, SRTP/UDP, MPEG2-TS/UDP, HTTP, HTTPS TCP/IP, ONVIF CameraDiscovery & GetStreamUri
Output
4U high chassis 4-16
7U high chassis 4 -32
14U high chassis 4 -72
Output Signal Formats HDMI, HDBaseT
Audio Embedded or separate analogue R-L audio inputs and outputs
HDCP HDCP support of 1.4, 2.0, 2.2 specifications
Control Local control by local monitor, keyboard, mouse
Remote control through RS232, TCP/IP LAN
Web based remote control user interface
Humidity 10 - 90%, non-condensing
Temperature 5 - 40 °C
Power Consumption 4U high chassis: 250-400 W
7U high chassis: 400-600 W
14U high chassis: 500-1000 W
Power Supply 100V - 240V AC
Weight 4U chassis: 20-30 kg
7U chassis: 30-45 kg
14U chassis: 45-60 kg
Dimensions 4U chassis: W483 x H178 x D526 (mm)
7U chassis: W483 x H296 x D526 (mm)
14U chassis: W483 x H613 x D526 (mm)



INPUT AND OUTPUT DETAILS

Input signal specifications Details
IP camera stream
IPv4,  RTSP, RTP/UDP, SRTP/UDP, MPEG2-TS/UDP, HTTP,
HTTPS TCP/IP, ONVIF CameraDiscovery & GetStreamUri
Video file
mp4, mkv, webm, mpeg-2



Output signal specifications Details
Digital HDMI 1.4 and HDCP 2.2 from 640x480 up to 4096x2160 60 Hz pixels
HDBaseT up to 100m (330 feet)
from 640x480 to 4096x2160 30 Hz



INPUT BOARD SET SPECIFICATIONS



IP4 IP Stream Input Board

 IP4 IP Stream input board - 4x channels



OUTPUT BOARD SET SPECIFICATIONS


4K60 HDMI Output Board - 4ch

 HDMI 4K60Hz output board - 4x channels

4K HDBaseT Output Board

 HDBaseT 4K output board

Preview Output Board

 Preview output board - 8x live windows





DMX302x-4U

DMX302x-4U-INIP16-OUTH8C8

DMX302x-4U-INIP16-OUTH8C8





DMX302x-7U

DMX302x-7U-INIP32-OUTH16C16

DMX302x-7U-INIP32-OUTH16C16





DMX302x-14U

DMX302x-14U-INIP72-OUTH40C32

DMX302x-14U-INIP72-OUTH40C32
