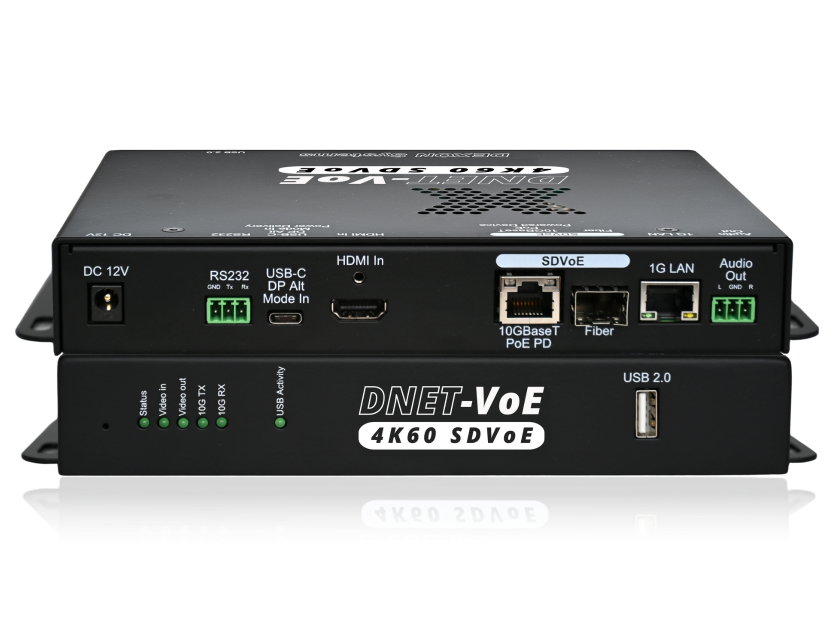

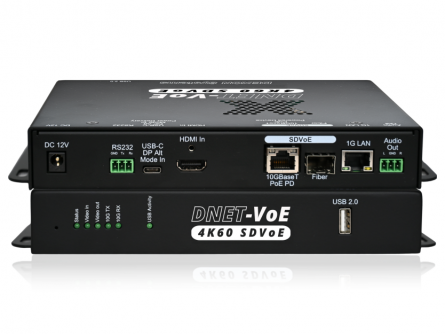

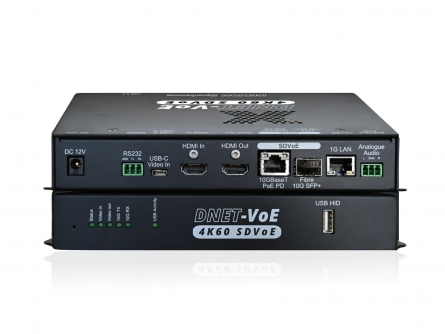

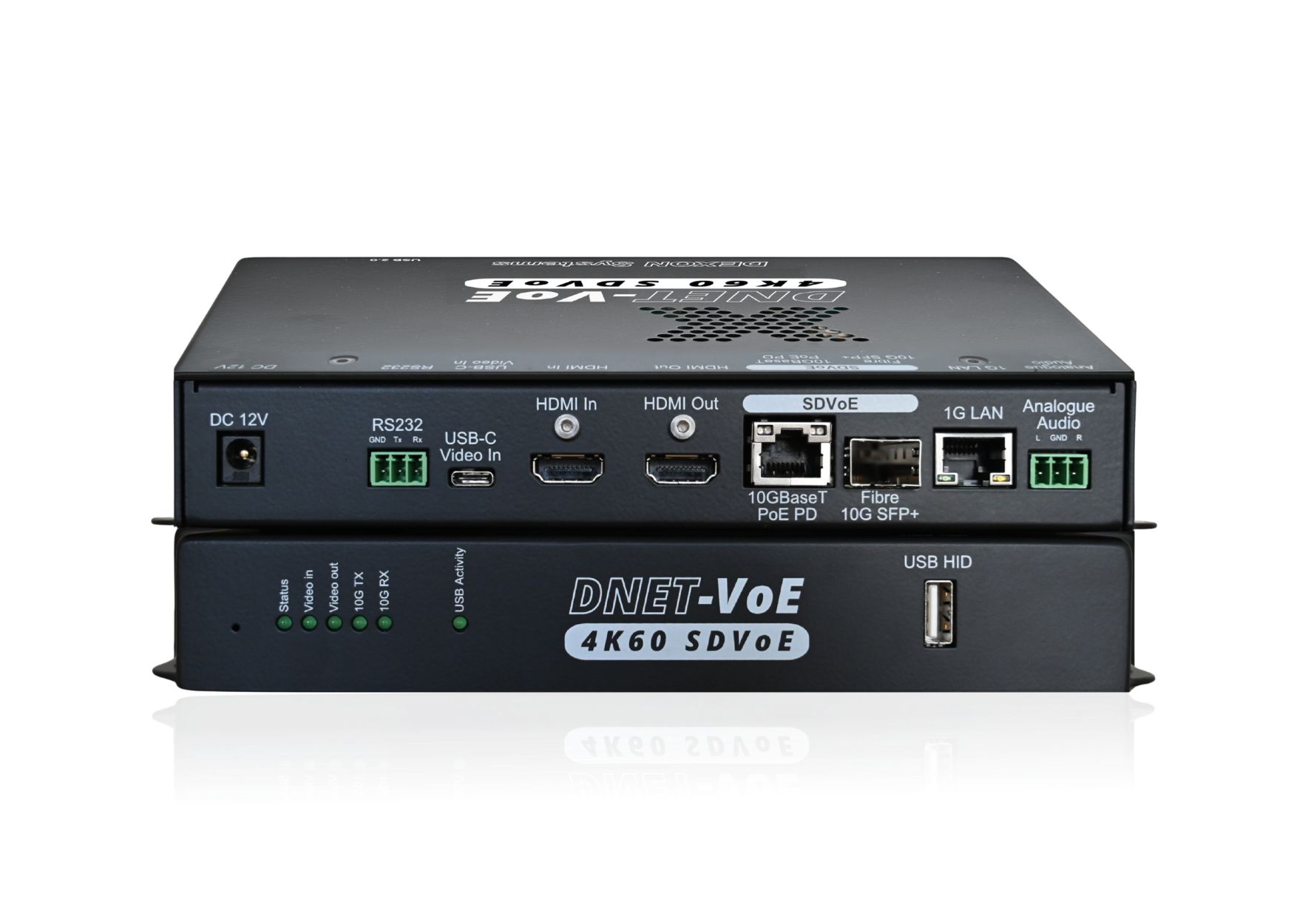

DNET-VoER SDVoE Receivers

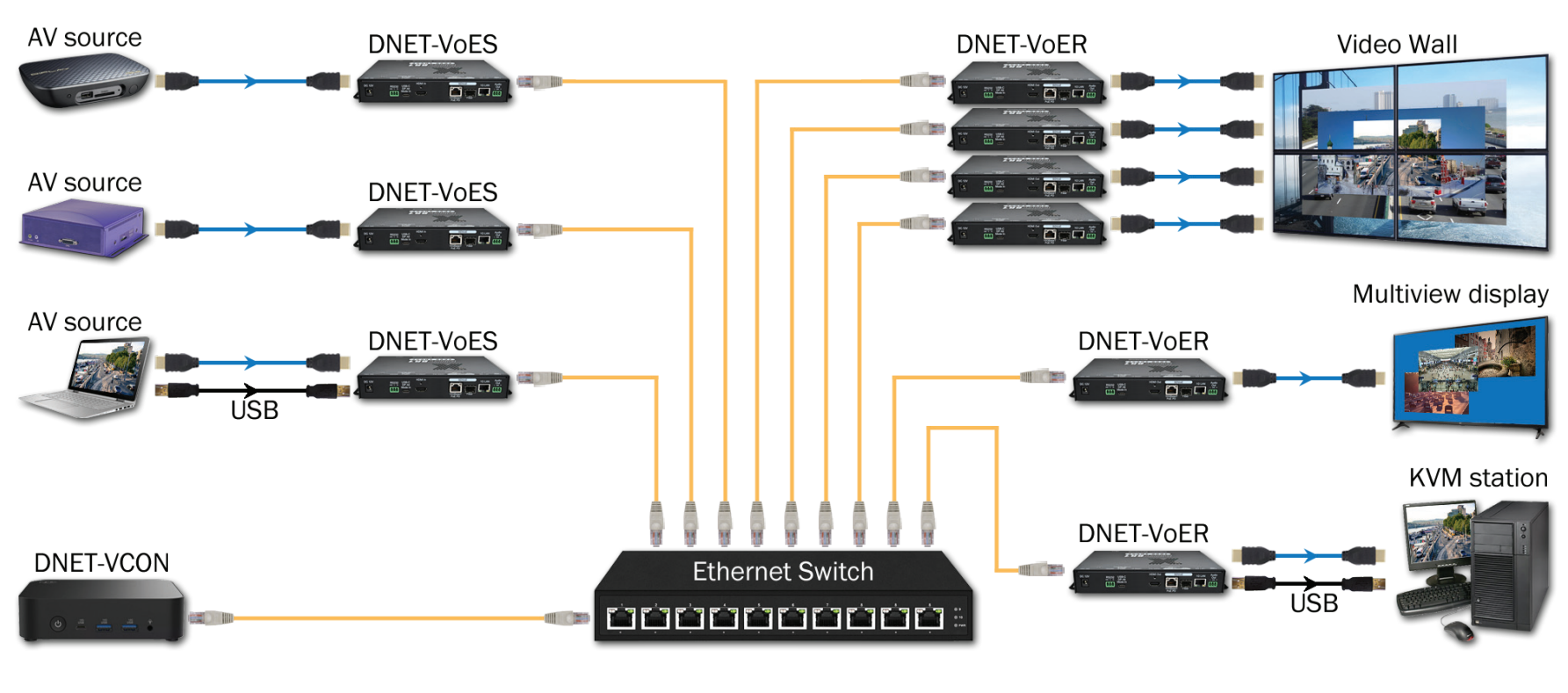

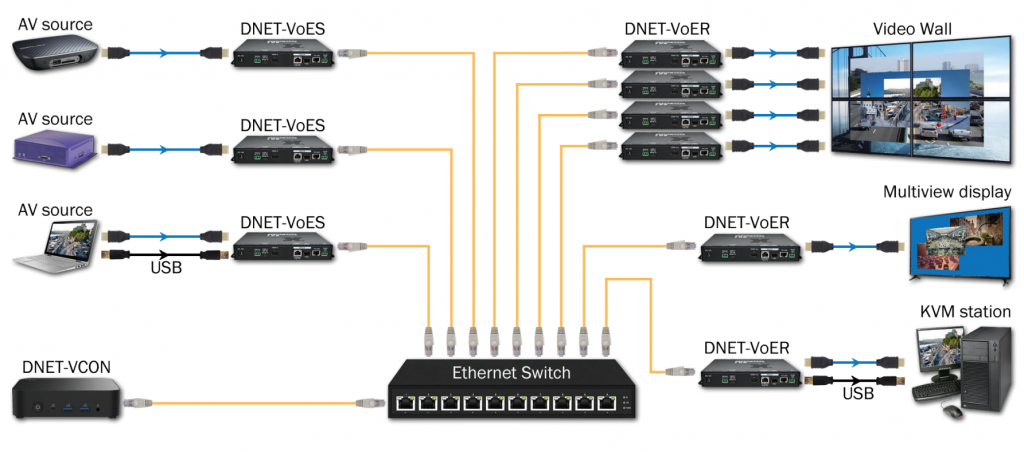

These transceivers and receivers create interoperable standards-based SDVoE-Compliant, All-In-One AV over IP solution. They provide highest-quality, uncompressed 4K and zero-frame latency audio/video extension over a standard 10G Copper or Fiber Network Switch. They offer instant switching, Video Wall and Multi View functions. They transfer advanced HDMI content such as HDR (high dynamic range), full color-depth and multichannel HD Bitstream audio. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control. Multiple control and data signals can be transmitted along with audio and video signals simultaneously, including USB HID and RS-232.

Key Features:

• Handling unlimited number of HDMI input signals
• Driving unlimited number of output signals
• Support of 4K60 4:4:4 input and output signals
• Working as a matrix switcher
• Multi viewer capability up to PIP20
• Professional up or down scaling
• Professional HDCP management
• Video independent, internal audio matrix

DNET-VCON SDVoE Supervisor Box

Basic supervisor device with network connections for SDVoE technology
Contains embedded operating system and the DNET-VCON custom software system providing

• Graphical web-based user interface for easy and quick system management
• Full featured control of the sender and receiver boxes
• Detailed setup and configuration for each of the devices
